We offer a range of over 25 standard electric high pressure cleaners for industrial cleaning applications. Our range includes volumes of 10 – 43 L/min and pressure of 105 – 500bar. They are available on a variety of mobile trolley, cabinet, and trailer chassis.
The mobile electric high pressure cleaners with an output of over 15 l/min; and all cabinet units come standard with a header tank. A header tank is available as an optional extra. It is necessary to prevent cavitation when water supply is either provided at a low pressure or is consistent.
Small Trolley Chassis
The lightweight trolley chassis is small and compact in design and therefore easy to transport. The “open” design of our electric high pressure cleaners enables easy accessibility for maintenance and repairs.
These electric high pressure cleaners are popular for use as car wash equipment, roof cleaning machines, chicken house cleaning, cleaning of piggeries and other industrial cleaning applications.
Features
- Small, trolley on wheels made from durable stainless steel
- Available in 220V or 380V (525V optional)
- 3 piston pump with ceramic plungers & brass manifold
- Starter mounted in control box
- 5m Power supply cable (15A plug supplied with 230V units)
- Inlet suction filter
- VBRS pressure regulating valve
- 10m high pressure hose
- Gun, lance & standard nozzle
Optional Extras
- Header tank with low-level cut-out
- Total stop/start
- Chemical Injector
230V Electric Small Trolley Chassis
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|
380V Electric Small Trolley Chassis
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-11-150 | NHD1115C | 11 L/min | 150bar | 3.0kW |
| 8H-3-15-150 | NMT1520 | 15 L/min | 150bar | 4.0kW |
| 8H-3-15-200 | NMT1520 | 15 L/min | 200bar | 5.5kW |
Components
Wheelbarrow Chassis
These electric high pressure cleaners are mounted on a wheelbarrow designed for easy mobility. The “open” design of the washer enables easy accessibility for maintenance and repairs.
These of electric high pressure cleaners are ideal for industrial cleaning applications such as rust removal; paint stripping; graffiti removal; tank cleaning; removal of gum from pavements; boat cleaning & barnacle removal; workshop & factory floor cleaning; & removing mud & clay from mining; highway & construction equipment.
Features
- Medium wheelbarrow chassis, made from mild steel, on wheels
- Available 380V (525V optional)
- Three-piston pump with ceramic plungers and a brass manifold
- Starter mounted in control box
- 5m Power supply cable
- Inlet suction filter
- VBRS pressure regulating valve
- 10m high pressure hose
- Gun, lance and standard nozzle
Optional Extras
- Header tank with low-level cut-out
- Total stop/start
- Chemical Injector
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-15-250 | NPM1525 | 15 L/min | 250bar | 7.5kW |
Components
4 Wheel Trolley Chassis
These electric high pressure cleaners are mounted on a 4-wheel push trolley which is manufactured from mild steel. With 4 wheels, this heavier high pressure washer is easy to move. The “open” design enables easy accessibility to the pressure washer system for maintenance and repairs.
A header tank is standard with a float valve and low-level cut-out switch is standard on these units. All our 450 – 500bar electric high pressure cleaners come standard with a safety valve.
Features
- Galvanized mild steel channel frame
- Available in 380V or 525V
- Three or five piston pump with ceramic plungers and brass manifold
- Pump and motor coupled using a tyre coupler
- Starter-mounted in control box
- 5m Power supply cable (no plug)
- Inlet suction filter
- Pressure regulating valve
- Header tank with low-level cut-out and float valve
- 10m high pressure hose
- Gun, lance and 500bar nozzle
450-500bar Units Include
- Safety valve
- Stainless steel nozzle
- Stainless steel lance
Optional Extras
- Total stop/start
- Chemical Injector
<200bar Electric 4 Wheel Trolley Chassis
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-18-200 | NMT1820I | 18 L/min | 200bar | 7.5kW |
| 8H-3-21-180 | NMT2120I | 21 L/min | 180bar | 7.5kW |
| 8H-3-30-200 | NLT3020I | 30 L/min | 200bar | 11kW |
| 8H-3-43-130 | XLT4317I | 43 L/min | 130bar | 11kW |
| 8H-3-43-170 | XLT4317I | 43 L/min | 170bar | 15kW |
300-350bar Electric 4 Wheel Trolley Chassis
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-18-300 | XLT1830I | 18 L/min | 300bar | 11kW |
| 8H-3-21-350 | PX2135I | 21 L/min | 350bar | 15kW |
450-500bar Electric 4 Wheel Trolley Chassis
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-15-500 | PX1550I | 15 L/min | 500bar | 15kW |
| 8H-3-17-450 | PX1750I | 17 L/min | 450bar | 15kW |
| 8H-3-17-500 | PX1750I | 17 L/min | 500bar | 18.5kW |

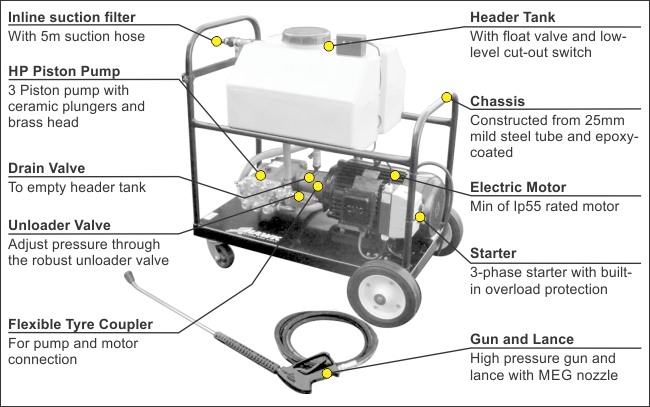

Components
Steerable Trolley Chassis
The trolley, for these electric high pressure cleaners, have a sturdy galvanized steel frame with 4 wheels. It has a pivoted steering column for easy maneuverability.
The “open” design allows easy access to the high pressure washer system for maintenance and repairs.
These high pressure cleaners comes standard with a 100 litre header tank with a float valve and low-level cut-out switch to prevent cavitation. These trolleys have been designed for heavy duty pressure washer systems.
Features
- Galvanized mild steel channel frame
- Available in 380V or 525V
- Three or five piston pump with ceramic plungers and brass manifold
- Pump and motor coupled using a tyre coupler
- Starter-mounted in control box
- 5m Power supply cable (no plug)
- Inlet suction filter
- Pressure regulating valve
- Safety valve
- Header tank with low-level cut-out and float valve
- 10m high pressure hose
- Gun, lance and 500bar nozzle
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-21-500 | PX2150I | 21 L/min | 500bar | 22kW |
| 8H-3-30-500 | MPX3050 | 30 L/min | 500bar | 30kW / 4pole |
Components
Cabinets
Cabinet mounted electric high pressure cleaners are ideal for static cleaning stations such as car washes, truck washes, abattoirs etc.
The cabinets are manufactured from durable 304 stainless and available as floor or wall mounts. The system is enclosed in the cabinet with doors for easy accessibility for maintenance and repairs.
Features
- Available as floor or wall mount
- Stainless steel chassis & covers with floor or wall mounting holes
- 3 piston pump with ceramic plungers & brass manifold
- Pump & motor coupled using a bell housing
- 5m Power supply cable (15A plug with 230v units)
- Inlet suction filter
- VBRS Pressure regulating valve
- Header tank with float valve & low-level cut-out switch
- 10m high pressure hose
- Gun, lance & standard nozzle
230V Floor Mount Cabinet
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-2-10-120F | NST1012C | 10 L/min | 120bar | 2.2kW |
| 8H-2-11-105F | NHD1115 | 11 L/min | 105bar | 2.2kW |
380V Floor Mount Cabinet
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-11-105F | NHD1115 | 11 L/min | 105bar | 2.2kW |
| 8H-3-15-150F | NMT1520 | 15 L/min | 150bar | 4.0kW |
| 8H-3-15-200F | NMT1520 | 15 L/min | 200bar | 5.5kW |
230V Wall Mount Cabinet
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-2-11-105W | NHD1115C | 11 L/min | 105bar | 2.2kW |
| 8H-2-11-150W | NHD1115C | 11 L/min | 150bar | 3.0kW |
380V Wall Mount Cabinet
| MODEL | PUMP | FLOW RATE | PRESSURE | POWER OUTPUT |
|---|---|---|---|---|
| 8H-3-11-105W | NHD1115C | 11 L/min | 105bar | 2.2kW |
| 8H-3-15-200W | NMT1520 | 15 L/min | 200bar | 5.5kW |
*The models listed are the most popular cabinet mounted high pressure cleaners. Many of the mobile pressure washers can be converted to a cabinet unit.
Components
FLOOR MOUNTED CABINET COMPONENTS
WALL MOUNTED CABINET COMPONENTS
